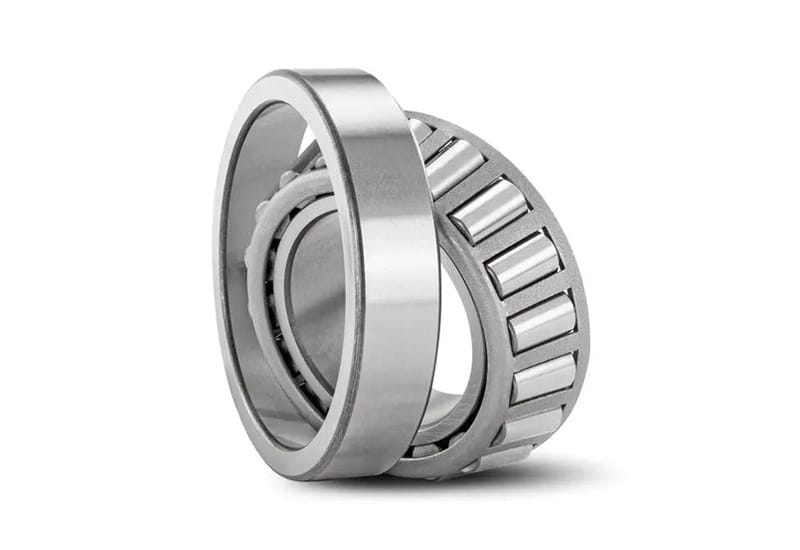

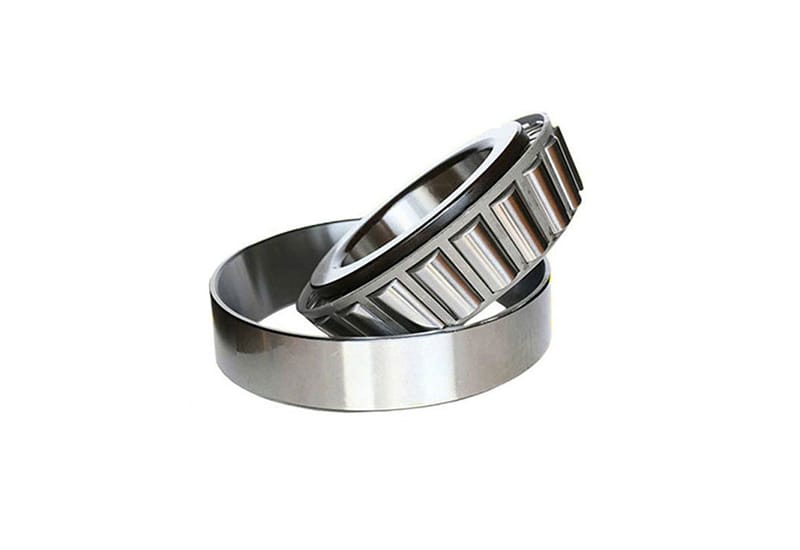

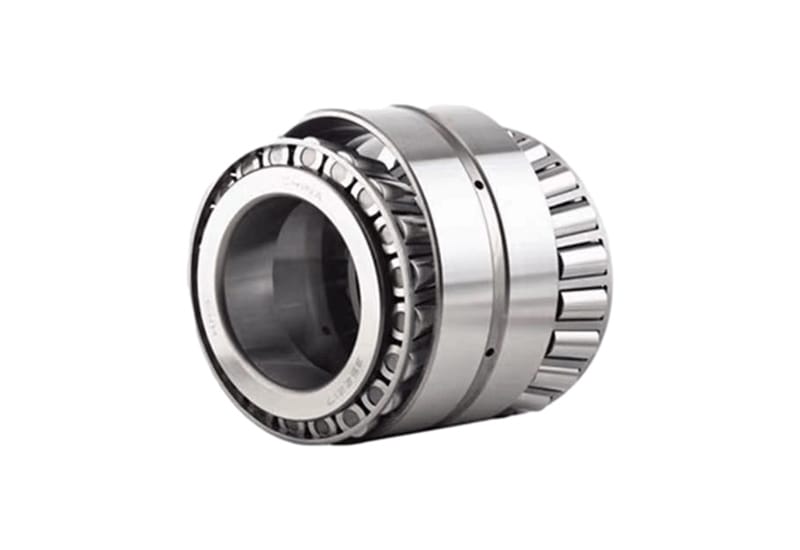

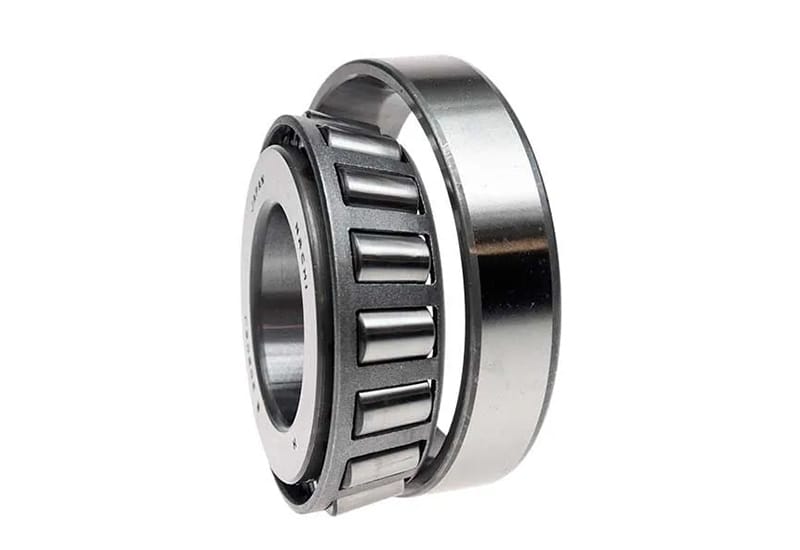

Tapered roller bearings are engineered with a focus on precise tapered surface fit and heavy-duty load-bearing capabilities, making them suitable for complex load-bearing scenarios. Highly fatigue-resistant bearing steel is vacuum-refined to remove impurities, ensuring substrate toughness and uniformity.
The rollers utilize a process consisting of cold heading, precision grinding of the tapered surface, and ultra-precision lapping of the end faces. Taper tolerances are controlled to ±5°, and end face parallelism is ≤0.002 mm, ensuring a tight fit with the inner and outer ring raceways. The rings are machined using a five-axis CNC grinder for tapered raceways, achieving a locking accuracy of IT4 to ensure assembly coaxiality.
Key components undergo full quenching and tempering, followed by cryogenic treatment, to prevent dimensional deformation under heavy loads. During assembly, specialized tooling is used to adjust radial clearance, and a stamped cage is used to ensure uniform roller distribution. The finished product undergoes tests for contact accuracy, rotational noise, and static load before being qualified for heavy-duty transmission applications such as automotive transmissions and mining machinery.
| model | d | D | B | b | T | Rs | R1s | Cg | Go | Grease lubrication | Oil lubrication | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32006JR | 30 | 55 | 16 | 14 | 17 | 1 | 1 | 3900 | 4890 | 7000 | 9400 | 0.17 |
| 07JR | 35 | 62 | 17 | 15 | 18 | 1 | 1 | 4630 | 6060 | 6200 | 8200 | 0.22 |
| 08JR | 40 | 68 | 18 | 16 | 19 | 1 | 1 | 5460 | 7280 | 5600 | 7400 | 0.27 |
| 09JR | 45 | 75 | 19 | 16 | 20 | 1 | 1 | 6400 | 8820 | 5000 | 6600 | 0.33 |

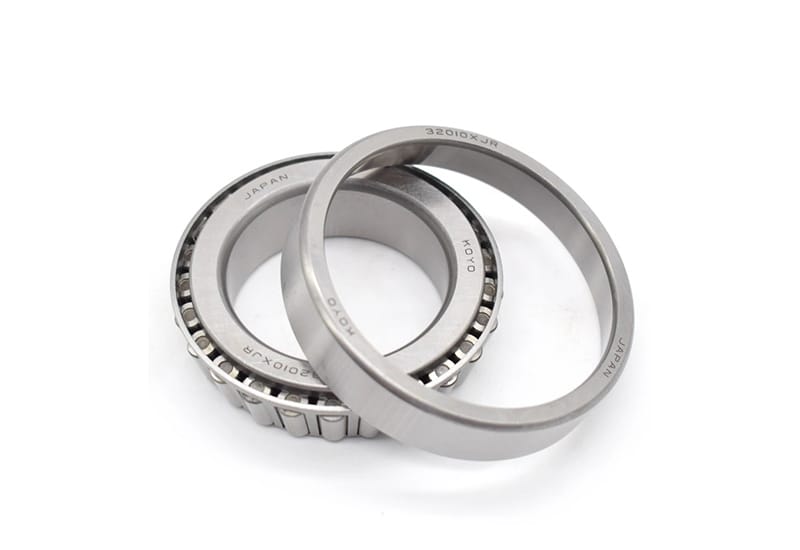

| 32010JR | 50 | 80 | 19 | 16 | 20 | 1 | 1 | 6700 | 9640 | 4600 | 6100 | 0.36 |
| 11JR | 55 | 90 | 22 | 19 | 23 | 1.5 | 1.5 | 8620 | 12400 | 4100 | 5500 | 0.54 |
| 12JR | 60 | 95 | 22 | 19 | 23 | 1.5 | 1.5 | 8780 | 12900 | 3900 | 5200 | 0.58 |
| 13JR | 65 | 100 | 22 | 19 | 23 | 1.5 | 1.5 | 9180 | 14000 | 3600 | 4800 | 0.62 |
| 32014JR | 70 | 110 | 24 | 20 | 25 | 1.5 | 1.5 | 11000 | 16600 | 3300 | 4400 | 0.83 |
| 15JR | 75 | 115 | 24 | 20 | 25 | 1.5 | 1.5 | 11200 | 17300 | 3100 | 4200 | 0.88 |
| 16JR | 80 | 125 | 27 | 23 | 29 | 1.5 | 1.5 | 15000 | 22900 | 2900 | 3900 | 1.24 |
| 17JR | 85 | 130 | 27 | 23 | 29 | 1.5 | 1.5 | 15300 | 23800 | 2800 | 3700 | 1.3 |
| 32018JR | 90 | 140 | 30 | 26 | 32 | 2 | 1.5 | 18200 | 28100 | 2600 | 3500 | 1.7 |
| 19JR | 95 | 145 | 30 | 26 | 32 | 2 | 1.5 | 18500 | 29300 | 2500 | 3300 | 1.8 |
| 20JR | 100 | 150 | 30 | 26 | 32 | 2 | 1.5 | 18900 | 30400 | 2400 | 3200 | 1.85 |
| 21JR | 105 | 160 | 33 | 28 | 35 | 2.5 | 2 | 21900 | 35100 | 2200 | 3000 | 2.35 |
| 32022JR | 110 | 170 | 36 | 31 | 38 | 2.5 | 2 | 25300 | 40300 | 2100 | 2800 | 2.95 |
| 26JR | 130 | 200 | 42 | 36 | 45 | 2.5 | 2 | 34700 | 57400 | 1800 | 2300 | 4.8 |
| 28JR | 140 | 210 | 42 | 36 | 45 | 2.5 | 35200 | 59600 | 1700 | 2200 | 5.1 | |
| 32030JR | 150 | 225 | 45 | 38 | 48 | 3 | 2.5 | 39900 | 68100 | 1500 | 2000 | 6.25 |
| 32JR | 160 | 240 | 48 | 41 | 51 | 3 | 2.5 | 44900 | 77300 | 1400 | 1900 | 7.5 |
| 34JR | 170 | 260 | 54 | 46 | 57 | 3 | 2.5 | 53600 | 92300 | 1300 | 1700 | 10.2 |
| 36JR | 180 | 280 | 60 | 52 | 64 | 3 | 2.5 | 65700 | 113000 | 1200 | 1600 | 13.6 |
| 30203JR | 17 | 40 | 12 | 11 | 13.25 | 1 | 2120 | 2110 | 10000 | 14000 | 0.074 | |
| 04JR | 20 | 47 | 14 | 12 | 15.25 | 1 | 1 | 2750 | 2770 | 8700 | 12000 | 0.12 |
| 05JR | 25 | 52 | 15 | 13 | 16.25 | 1 | 3220 | 3440 | 7800 | 10000 | 0.145 | |
| 06JR | 30 | 62 | 16 | 14 | 17.25 | 4230 | 4570 | 6500 | 8700 | 0.222 | ||
| 30207JR | 72 | 17 | 15 | 18.25 | 1.5 | 1.5 | 5620 | 6210 | 5600 | 7400 | 0.318 | |
| 08JR | 40 | 80 | 18 | 16 | 19.75 | 1.5 | 1.5 | 6410 | 7050 | 5000 | 6700 | 0.413 |
| 09JR | 45 | 85 | 19 | 16 | 20.75 | 1.5 | 1.5 | 6850 | 7890 | 4600 | 6100 | 0.467 |
| 10JR | 50 | 90 | 20 | 17 | 21.75 | 1.5 | 1.5 | 7800 | 9350 | 4300 | 5700 | 0.525 |
| 30211JR | 55 | 100 | 21 | 18 | 22.75 | 2 | 1.5 | 9640 | 11500 | 3900 | 5200 | 0.687 |
| 12JR | 60 | 110 | 22 | 19 | 23.75 | 1.5 | 10800 | 13000 | 3500 | 4700 | 0.86 | |
| 13JR | 65 | 120 | 23 | 20 | 24.75 | 2 | 1.5 | 13100 | 15900 | 3200 | 4300 | 1.11 |
| 14JR | 70 | 125 | 24 | 21 | 26.25 | 1.5 | 14100 | 17600 | 3100 | 4100 | 1.22 | |
| 30215JR | 75 | 130 | 25 | 22 | 27.25 | 2 | 1.5 | 14500 | 18500 | 2900 | 3900 | 1.34 |
| 16JR | 80 | 140 | 26 | 22 | 28.25 | 2.5 | 2 | 16500 | 20600 | 2700 | 3600 | 1.59 |
| 17JR | 85 | 150 | 28 | 24 | 30.5 | 2.5 | 2 | 18600 | 23600 | 2500 | 3400 | 2.01 |
| 18JR | 90 | 160 | 30 | 26 | 32.5 | 2.5 | 2 | 20800 | 26600 | 2400 | 3200 | 2.49 |
| 30219JR | 95 | 170 | 32 | 27 | 34.5 | 3 | 2.5 | 23600 | 30500 | 2200 | 3000 | 2.95 |
| 20JR | 100 | 180 | 34 | 29 | 37 | 3 | 2.5 | 26300 | 34400 | 2100 | 2800 | 3.58 |
| 21JR | 105 | 190 | 36 | 30 | 39 | 3 | 2.5 | 29400 | 38800 | 2000 | 2600 | 4.18 |
| 22JR | 110 | 200 | 38 | 32 | 41 | 3 | 2.5 | 33000 | 44300 | 1900 | 2500 | 4.99 |
| 30224JR | 120 | 215 | 40 | 34 | 43.5 | 3 | 2.5 | 35400 | 48200 | 1700 | 2300 | 6.02 |
| 26JR | 130 | 230 | 40 | 34 | 43.75 | 4 | 3 | 38400 | 52100 | 1600 | 2100 | 7.6 |
| 28JR | 140 | 250 | 42 | 45.75 | 4 | 3 | 42800 | 58100 | 1500 | 1900 | 8.65 | |
| 30JR | 150 | 270 | 45 | 38 | 49 | 49200 | 67700 | 1300 | 1800 | 10.8 |
