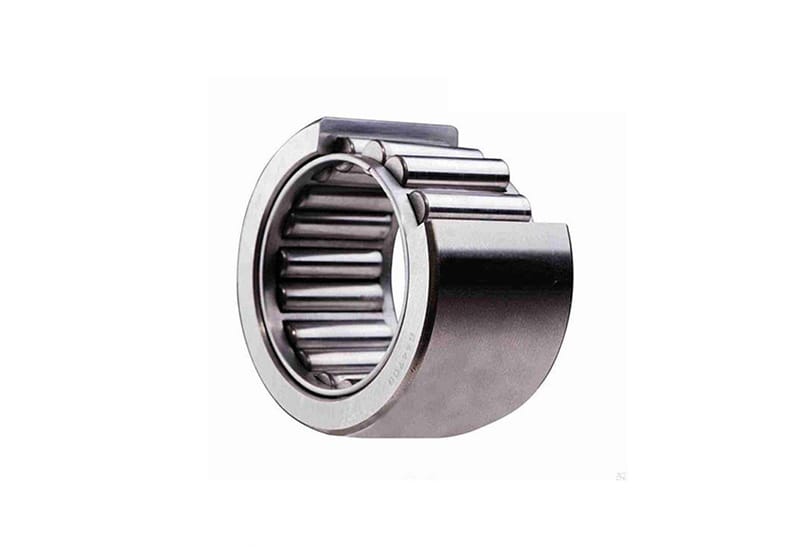

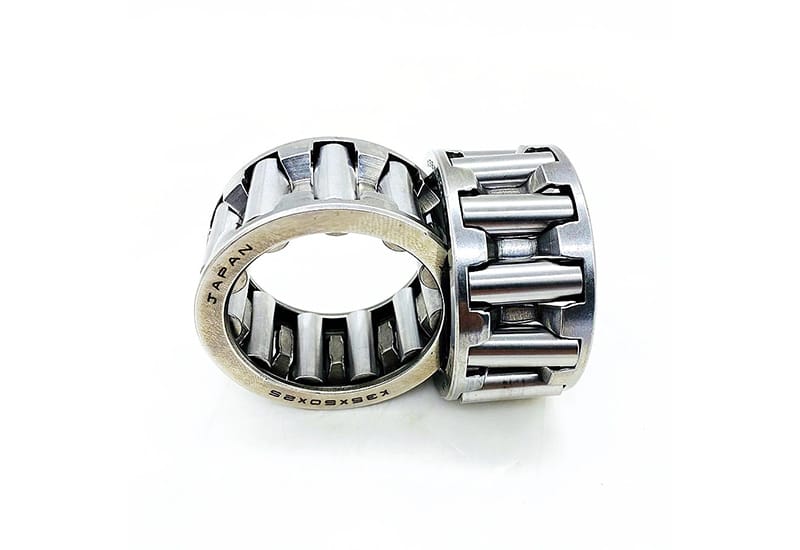

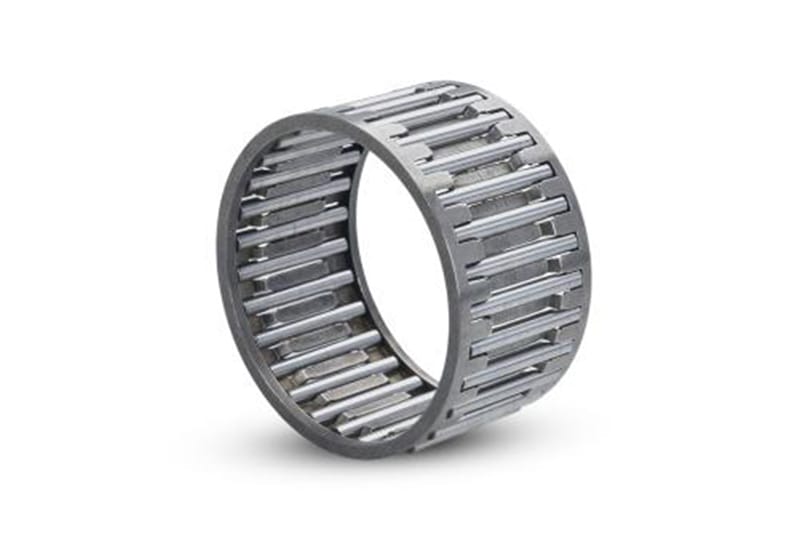

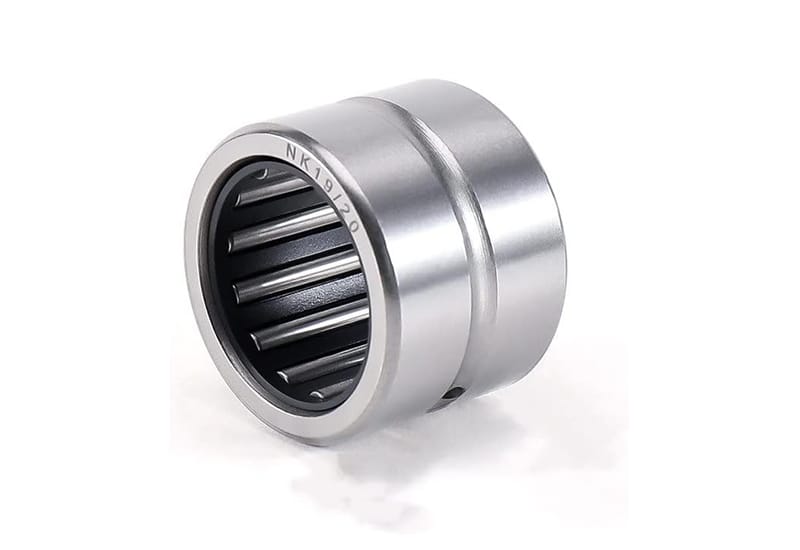

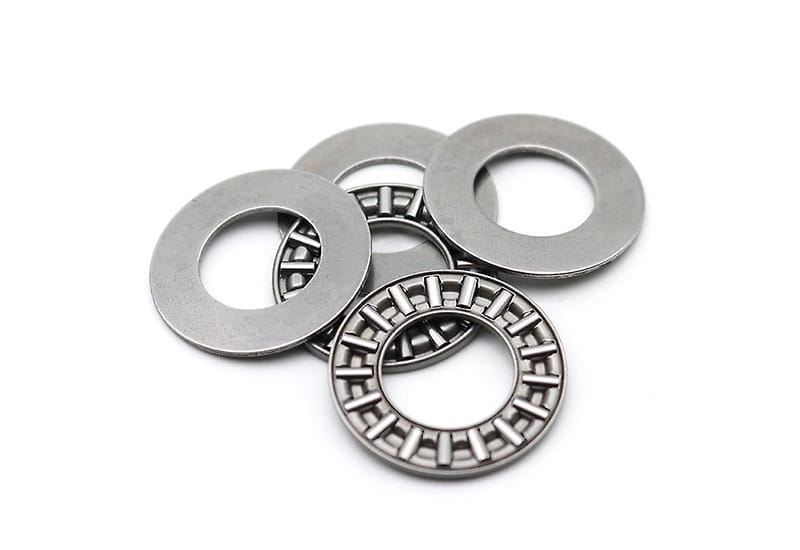

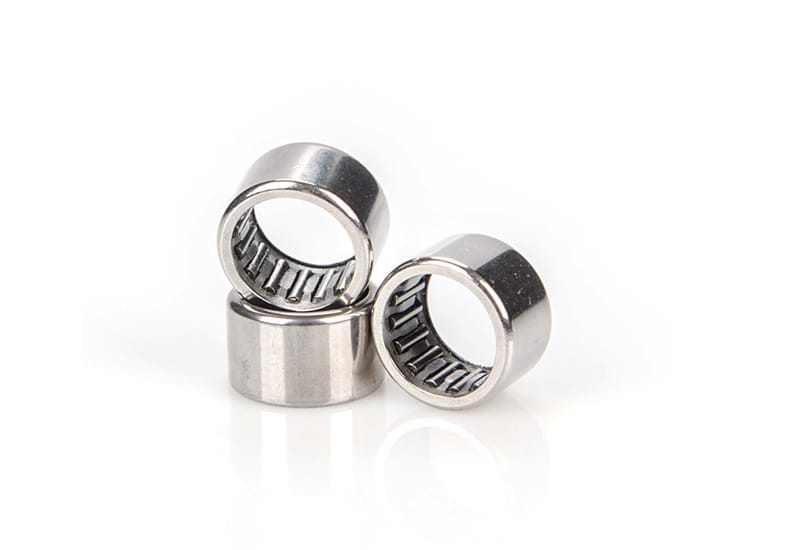

The needle roller bearing process focuses on “precision forming + performance enhancement,” meeting the high-load requirements of compact spaces. High-carbon chromium bearing steel is carefully selected and homogenized to ensure high wear and fatigue resistance. The needle rollers are formed in a single step by cold heading, followed by precision centerless grinding to achieve micron-level diameter tolerances. Surface phosphate treatment further reduces friction loss. The ring grooves are CNC profile-ground, achieving inner and outer diameter tolerances within IT5, ensuring a precise fit with the needle rollers.
Key components undergo overall quenching and tempering, coupled with cryogenic treatment to stabilize the metallographic structure and prevent dimensional deformation during use. Assembly is completed in a Class 1000 cleanroom, with precise clearance control ensuring smooth rotation. The finished product undergoes dimensional accuracy, rotational noise, and dynamic life testing. Ultimately, it is suitable for compact transmission applications such as automotive transmissions, precision motors, and hydraulic pumps, achieving the technological value of “small size, high load capacity.”
| (Model) | (Type) | parameter | G(g) | C(kg) | ||
|---|---|---|---|---|---|---|
| Dr | D | B | ||||
| TLA 48 | needle roller bearings | 4 | 8 | 8 | 1.54 | 150 |
| TLA 59 | needle roller bearings | 5 | 9 | 9 | 2 | 210 |
| TLA 69 | needle roller bearings | 6 | 10 | 9 | 2.3 | 230 |
| TLA 79 | needle roller bearings | 7 | 11 | 9 | 2.6 | 270 |
| TLA 810 | needle roller bearings | 8 | 12 | 10 | 3.3 | 350 |
| TLA 910 | needle roller bearings | 9 | 13 | 10 | 3.6 | 370 |
| TLA 912 | needle roller bearings | 9 | 13 | 12 | 4.3 | 450 |
| TLA 1010 | needle roller bearings | 10 | 14 | 10 | 3.9 | 410 |
| TLA 1012 | needle roller bearings | 10 | 14 | 12 | 4.7 | 500 |
| TLA 1015 | needle roller bearings | 10 | 14 | 15 | 6 | 630 |
| TLA 1210 | needle roller bearings | 12 | 16 | 10 | 4.6 | 460 |
| TLA 1212 | needle roller bearings | 12 | 18 | 12 | 9.1 | 610 |
| TLA 1312 | needle roller bearings | 13 | 19 | 12 | 6.7 | 640 |
| TLA 1412 | needle roller bearings | 14 | 20 | 12 | 10.3 | 670 |
| TLA 1416 | needle roller bearings | 14 | 20 | 16 | 13.8 | 870 |
| TLA 1512 | needle roller bearings | 15 | 21 | 12 | 10.9 | 700 |
| TLA 1516 | needle roller bearings | 15 | 21 | 16 | 14.7 | 900 |
| TLA 1522 | needle roller bearings | 15 | 21 | 22 | 20.5 | 1280 |
| TLA 1612 | needle roller bearings | 16 | 22 | 12 | 11.5 | 730 |
| TLA 1616 | needle roller bearings | 16 | 22 | 16 | 15.6 | 940 |
| TLA 1622 | needle roller bearings | 16 | 22 | 22 | 21.5 | 1330 |
| TLA 1712 | needle roller bearings | 17 | 23 | 12 | 12.1 | 750 |
| TLA 1812 | needle roller bearings | 18 | 24 | 12 | 12.7 | 780 |
| TLA 1816 | needle roller bearings | 18 | 24 | 16 | 17.2 | 1000 |
| TLA 2012 | needle roller bearings | 20 | 26 | 12 | 13.9 | 820 |
| TLA 2016 | needle roller bearings | 20 | 26 | 16 | 18.8 | 1070 |
| TLA 2020 | needle roller bearings | 20 | 26 | 20 | 23.5 | 1370 |
| TLA 2030 | needle roller bearings | 20 | 26 | 30 | 36 | 2050 |
| TLA 2212 | needle roller bearings | 22 | 28 | 12 | 15.1 | 870 |
| TLA 2216 | needle roller bearings | 22 | 28 | 16 | 20.5 | 1130 |
| TLA 2220 | needle roller bearings | 22 | 28 | 20 | 25.5 | 1450 |
| TLA 2512 | needle roller bearings | 25 | 32 | 12 | 20 | 960 |
| TLA 2516 | needle roller bearings | 25 | 32 | 16 | 27 | 1250 |
| TLA 2520 | needle roller bearings | 25 | 32 | 20 | 34 | 1610 |
| TLA 2526 | needle roller bearings | 25 | 32 | 26 | 44.5 | 2110 |
| TLAW 2538 | needle roller bearings | 25 | 32 | 38 | 63.5 | 2760 |
| TLA 2816 | needle roller bearings | 28 | 35 | 16 | 30 | 1360 |
| TLA 2820 | needle roller bearings | 28 | 35 | 20 | 38 | 1740 |
| TLA 3012 | needle roller bearings | 30 | 37 | 12 | 23.5 | 1060 |
| TLA 3016 | needle roller bearings | 30 | 37 | 16 | 32 | 1380 |
| TLA 3018 | needle roller bearings | 30 | 37 | 18 | 36 | 1580 |
| TLA 3020 | needle roller bearings | 30 | 37 | 20 | 40 | 1780 |
| TLA 3026 | needle roller bearings | 30 | 37 | 26 | 52.5 | 2330 |
| TLAW 3038 | needle roller bearings | 30 | 37 | 38 | 74.5 | 3040 |
| TLA 3512 | needle roller bearings | 35 | 42 | 12 | 27 | 1170 |
| TLA 3516 | needle roller bearings | 35 | 42 | 16 | 37 | 1530 |
| TLA 3520 | needle roller bearings | 35 | 42 | 20 | 46.5 | 1970 |
| TLA 4012 | needle roller bearings | 40 | 47 | 12 | 30.5 | 1260 |
| TLA 4016 | needle roller bearings | 40 | 47 | 16 | 41.5 | 1640 |
| TLA 4020 | needle roller bearings | 40 | 47 | 20 | 51 | 2110 |
| TLA 4516 | needle roller bearings | 45 | 52 | 16 | 46 | 1730 |
| TLA 4520 | needle roller bearings | 45 | 52 | 20 | 58 | 2230 |
| TLA 5020 | needle roller bearings | 50 | 58 | 20 | 72.5 | 2730 |
| TLA 5025 | needle roller bearings | 50 | 58 | 25 | 92 | 3450 |
| TLA 5520 | needle roller bearings | 55 | 63 | 20 | 80.5 | 2830 |
| TLA 5525 | needle roller bearings | 55 | 63 | 25 | 101 | 3580 |
