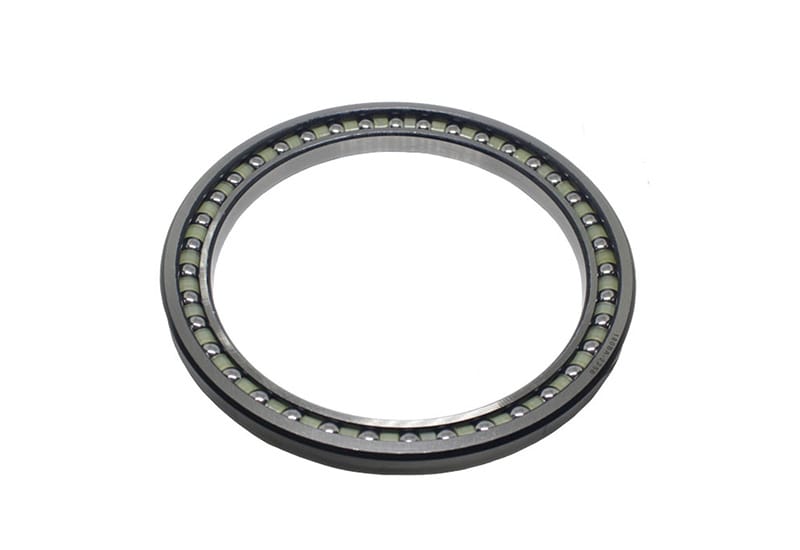

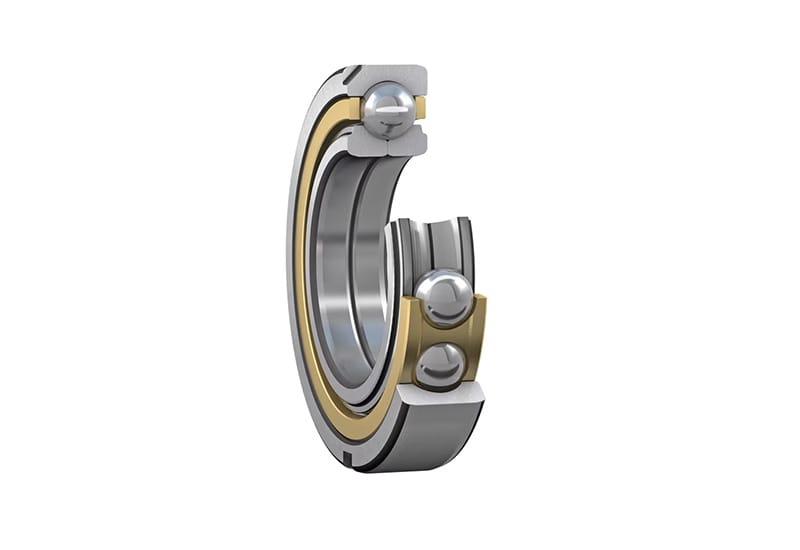

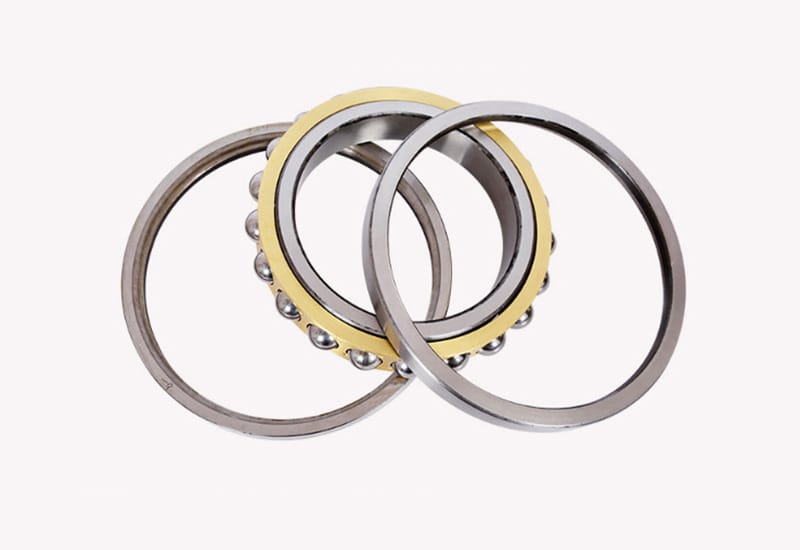

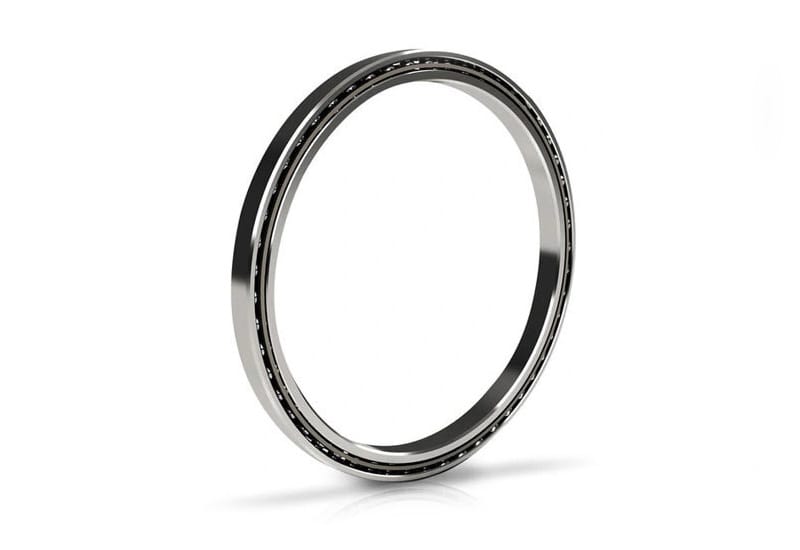

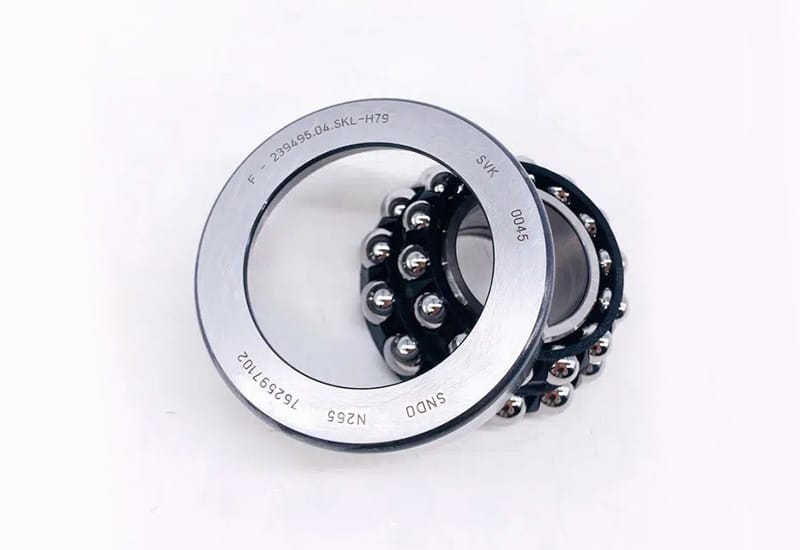

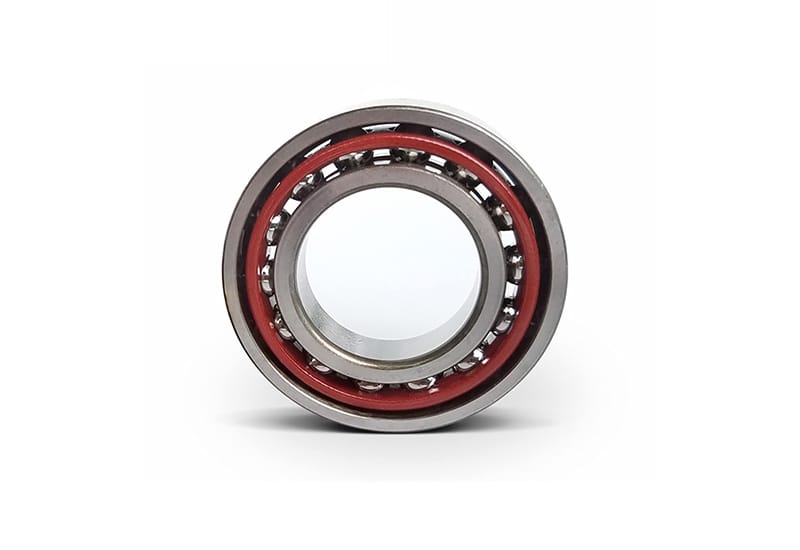

Angular contact ball bearings manufacturing focuses on “high-precision contact angle control + high-speed adaptability,” specifically designed for high-speed and axial load applications. High-carbon chromium-bearing steel is vacuum-refined to remove impurities, ensuring substrate uniformity and fatigue resistance.
The rings and raceways are machined on a five-axis CNC grinder, achieving a contact angle tolerance of ±0.5° and a surface roughness of Ra ≤ 0.1μm. The steel balls undergo a “cold heading, fine grinding, and super-finishing” process, achieving a roundness tolerance of ≤ 0.001 mm. Key components undergo full quenching and tempering, followed by cryogenic treatment, to prevent dimensional deformation at high speeds.
Assembly is completed in a Class 1000 cleanroom, where preload and clearance are adjusted using specialized tooling to ensure precise fit between the rolling elements and raceways. The finished product undergoes dynamic balancing, vibration and noise, and contact accuracy testing, ultimately ensuring compatibility with high-frequency operating conditions such as motors and machine tool spindles, achieving “low-noise, high-stability” transmission.
| Bearing No. | I.D | O.D | width | (KN) Load Rating | Speed limit | Weight kg | ||
|---|---|---|---|---|---|---|---|---|
| d mm | D mm | B mm | Dynam Cr | Static Cor | Greas r/min | Oil r/min | ||
| 7000AC | 10 | 26 | 8 | 4.7 | 2.1 | 24000 | 32000 | 0.019 |
| 7001AC | 12 | 28 | 8 | 5.1 | 2.4 | 22000 | 28000 | 0.021 |
| 7002AC | 15 | 32 | 9 | 5.9 | 3.2 | 19000 | 25000 | 0.03 |
| 7003AC | 17 | 35 | 10 | 6.3 | 3.6 | 16000 | 22000 | 0.04 |
| 7004AC | 20 | 42 | 12 | 10 | 5.7 | 14000 | 19000 | 0.064 |
| 7005AC | 25 | 47 | 12 | 11.1 | 7 | 12000 | 17000 | 0.074 |
| 7006AC | 30 | 55 | 13 | 14.4 | 9.8 | 9500 | 14000 | 0.11 |
| 7007AC | 35 | 62 | 14 | 17.3 | 12.1 | 8500 | 12000 | 0.15 |
| 7008AC | 40 | 68 | 15 | 18.7 | 14.1 | 8000 | 11000 | 0.18 |
| 7009AC | 45 | 75 | 16 | 24.7 | 19.1 | 7500 | 10000 | 0.23 |
| 7010AC | 50 | 80 | 16 | 25.3 | 20.5 | 6700 | 9000 | 0.25 |
| 7011AC | 55 | 90 | 18 | 35.5 | 26.5 | 6000 | 8000 | 0.38 |
| 7012AC | 60 | 95 | 18 | 37 | 31.3 | 5600 | 7500 | 0.4 |
| 7013AC | 65 | 100 | 18 | 38 | 33.6 | 5300 | 7000 | 0.43 |
| 7014AC | 70 | 110 | 20 | 45.8 | 40.9 | 5000 | 6700 | 0.6 |
| 7015AC | 75 | 115 | 20 | 47.5 | 43.3 | 4800 | 6300 | 0.63 |
| 7016AC | 80 | 125 | 22 | 57.5 | 51 | 4500 | 6000 | 0.85 |
| 7017AC | 85 | 130 | 22 | 55 | 52.8 | 4300 | 5600 | 0.89 |
| 7018AC | 90 | 140 | 24 | 71.7 | 68.7 | 4000 | 5300 | 1.15 |
| 7019AC | 95 | 145 | 24 | 69.8 | 69.1 | 3800 | 5000 | 1.2 |
| 7020AC | 100 | 150 | 24 | 69 | 69.7 | 3800 | 5000 | 1.25 |
| 7021AC | 105 | 160 | 26 | 80.9 | 72.2 | 3600 | 4800 | 1.6 |
| 7022AC | 110 | 170 | 28 | 98.5 | 93.9 | 3400 | 4600 | 1.95 |
| 7024AC | 120 | 180 | 28 | 103.5 | 104.5 | 2800 | 3800 | 2.1 |
| 7026AC | 130 | 200 | 33 | 122.4 | 127.8 | 2600 | 3400 | 3.33 |
| 7028AC | 140 | 210 | 33 | 145.3 | 152.8 | 2400 | 3200 | 3.46 |
| 7030ACM | 150 | 225 | 35 | / | / | / | / | 4 |
| 7032ACM | 160 | 240 | 38 | / | / | / | / | 5.02 |
| 7034ACM | 170 | 260 | 42 | / | / | / | / | 7.86 |
| 7036ACM | 180 | 280 | 46 | / | / | / | / | 8.3 |
| 7038ACM | 190 | 290 | 46 | / | / | / | / | 11.2 |
| 7040ACM | 200 | 310 | 51 | / | / | / | / | 16.21 |
